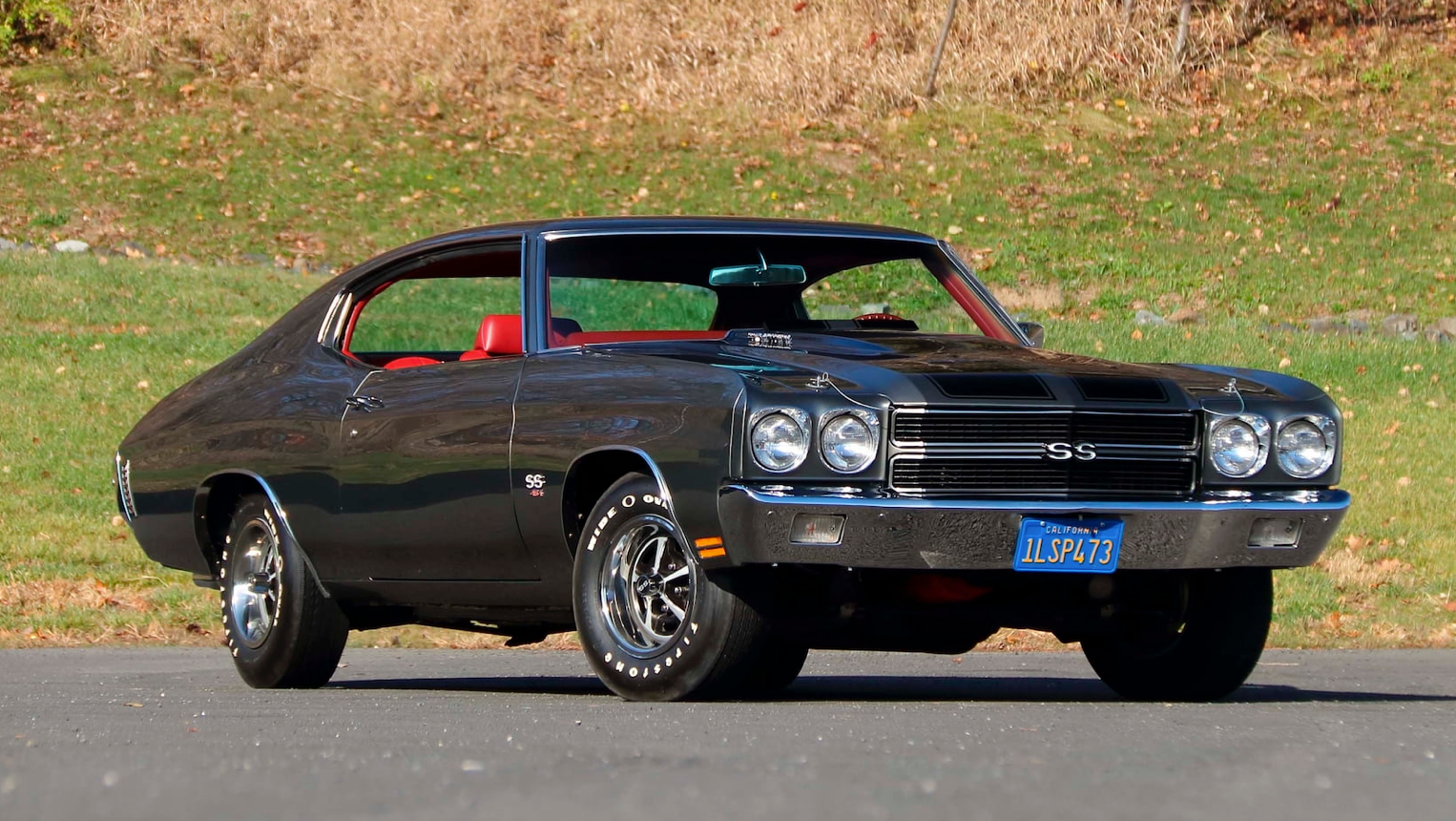

How to troubleshoot ignition problems on a 1970 Chevrolet Chevelle SS 454?

Model: 1970 Chevrolet Chevelle SS 454

Ignition problems on a 1970 Chevrolet Chevelle SS 454 can manifest in various ways, such as difficulty starting the engine, engine misfires, or the car not starting at all. These issues can stem from several sources, including faulty spark plugs, ignition coils, distributor problems, or wiring issues. To address this problem effectively, you’ll need a systematic approach to identify and fix the root cause. Here is how to solve this issue.

Step 1: Inspect the Spark Plugs

First, locate the spark plugs in the engine bay. On the Chevrolet Chevelle SS 454, the spark plugs are positioned on either side of the engine block. They are attached to the cylinder heads and can be identified as small, metallic cylindrical parts with a wire connected to the top.

Remove each spark plug wire by firmly gripping the wire boot (closer to the plug itself) and pulling it out.
Examine the spark plugs by unscrewing them with a spark plug socket wrench. Look for carbon deposits, oil fouling, or damage to the electrode.
Replace any spark plugs that show wear or damage. Ensure the new spark plugs match the recommended specifications from the owner's manual.

Step 2: Check the Distributor

The distributor is a crucial component of the ignition system. You'll find it near the back of the engine, typically mounted to the engine block. It’s a cylindrical component with multiple wires leading out from the distributor cap.

Remove the distributor cap by unscrewing the retaining screws.
Inspect the inside of the cap for any signs of moisture, cracks, or carbon tracking (small black lines inside the cap).
Examine the rotor within the distributor for wear or damage.
Clean or replace the distributor cap and rotor if any defects are found.

Step 3: Test the Ignition Coil

The ignition coil is responsible for converting the battery's voltage into the high voltage needed to create a spark at the spark plugs. On the Chevelle SS 454, the ignition coil is typically mounted on or near the engine's intake manifold. It usually appears as a cylindrical object connected to both the distributor and the ignition module.

Disconnect the coil wire from both the distributor and the ignition coil.
Use a multimeter to check the resistance of the ignition coil per the specifications stated in the service manual.
Replace the ignition coil if the resistance values are outside the recommended range.

Step 4: Inspect the Wiring

Faulty or corroded wiring can cause ignition problems. Check all the wiring associated with the ignition system, including:

Battery Leads: Ensure the battery cables are tightly connected and free of corrosion.
Ground Wires: Verify that all ground connections are secure and free of rust or corrosion.
Ignition Wiring: Follow the wiring from the ignition switch to the coil and distributor, checking for frayed wires, loose connections, or signs of short circuits.

Step 5: Verify the Timing

Incorrect ignition timing can lead to poor engine performance. To check the timing:

Locate the harmonic balancer at the front of the engine and the timing tab mounted on the timing cover. They should have timing marks.
Connect a timing light to the #1 spark plug wire (the first cylinder on the driver's side).
Start the engine and aim the timing light at the timing tab. The strobing light will help you see the timing marks.
Adjust the distributor by loosening the retaining bolt and slightly rotating the distributor until the timing marks align as specified in the service manual.

By following these steps thoroughly, you can diagnose and resolve ignition problems on your 1970 Chevrolet Chevelle SS 454, ensuring smoother performance and reliability out on the road.
